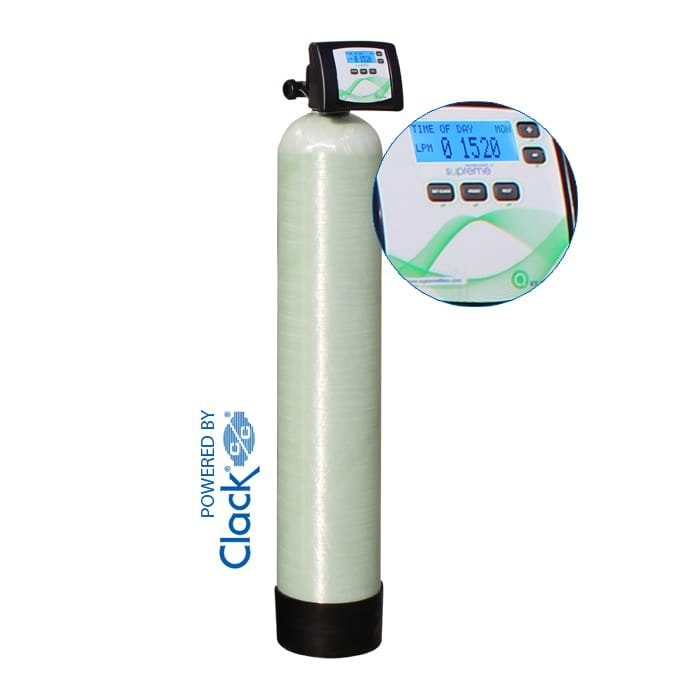

SUPREME OXYLINE85 PLUS | Water iron remover

SUPREME OXYLINE85 PLUS | Water iron remover

5.490,00 zł
5.490,00 zł
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Ships in: 5 days
  • Safe shopping - 14 days to return
  • Shipping: FREE
  • MULTIDISCOUNTS

Przelewy24 Raty
Tu kupisz na RATY 0%
LeaseLink
Dostępny LEASING dla firm

SUPREME OXYLINE86 PLUS Water Iron Remover – powerful performance and eco-friendly filtration

SUPREME OXYLINE86 PLUS is an uncompromising, large-scale iron removal system designed for multi-family homes and facilities with very high water demand. The device is equipped with a powerful tank containing 84.5 dm³ of specialized, lightweight catalytic media (Katalox Light™). Such a large volume of media allows for highly effective reduction of iron, manganese, and hydrogen sulfide at a nominal operating flow of 1.9 m³/h (maximum instantaneous flow up to 3.0 m³/h). The system operates based on 100% eco-friendly aeration technology inside the tank, completely eliminating the need for chemicals (e.g., potassium permanganate) and external, space-consuming aeration devices.

The unit is controlled by a reliable, American-made CLACK IMPRESSION valve, equipped with a backlit LCD panel and NOVARAM memory, which protects settings against power outages. Despite its significant dimensions (1900 mm height, 340 mm width, and 330 mm depth – 435 mm with bypass), this iron remover is characterized by optimal flushing water requirements. Efficient rinsing of the system requires a pump capacity of 2.5 m³/h. The OXYLINE86 PLUS model is fully compatible with any type of pressure tank (including modern diaphragm tanks) and features an innovative air pocket replacement function during the operating cycle, which is crucial for extreme concentrations of contaminants.

Parametry techniczne
Wymiary, dł. x szer. x wys 340 mm, 330 mm, 1900 mm
Zakres filtracji Iron (Fe), Manganese (Mn), Hydrogen sulfide (H₂S)
Typ urządzenia Water iron remover
Producent zaworu sterującego Clack®
Pojemność zbiornika soli Brak danych
Pojemność złoża 84.5 L
Przepływ roboczy, m³/h 3
Maksymalne ciśnienie, bar 8.6
Min ciśnienie, Bar 2.5
Dla ilu osób from 8
Waga 110 kg
Gwarancja na urządzenie 10 years
View full details

Adjust the system to your needs

  • Montaż zmiękczacza wody - 1

    Water softener installation

    Water softener installation

    ×

    Request a Quote

    Water softener installation

    Thank you! Your request has been sent. We will contact you shortly.
  • Przyłącze kątowe do systemów z serii OXYLINE - 1

    Angle connector for OXYLINE series systems

    Angle connector for OXYLINE series systems

    80,00 zł
    80,00 zł
  • Zawór BY-PASS do systemów OXYLINE i OXYLINE PLUS | UST-M - 1

    BY-PASS valve for OXYLINE and OXYLINE PLUS systems | UST-M

    BY-PASS valve for OXYLINE and OXYLINE PLUS systems | UST-M

    149,00 zł
    149,00 zł
  • Syfon BWT do zmiękczacza wody + Zestaw przyłączeniowy | BWT - 1

    BWT water softener siphon + Connection kit | BWT

    BWT water softener siphon + Connection kit | BWT

    99,00 zł
    99,00 zł

Key Features

Key advantages of the powerful OXYLINE86 PLUS model:

  • Huge bed capacity (84.5 L):A powerful dose of Katalox Light™ media guarantees high performance (nominally 1.9 m³/h) and effortless handling of difficult water (effective operation even at low pH from 5.8).
  • 100% natural regeneration:The system draws only ambient air, creating an air pocket inside the cylinder. This relieves you of the burdensome obligation to purchase, store, and dose chemical regenerants.
  • Ideal for diaphragm pressure tanks:The iron removal filter works perfectly with modern diaphragm pressure tanks, where water does not have natural contact with air, eliminating the need to install external aerators.
  • Intelligent air control:With an exceptionally high hydrogen sulfide content, water requires more oxygen. The CLACK IMPRESSION valve can automatically replace the air pocket halfway through the duty cycle, ensuring continuous effectiveness.
  • Economical backwashing:The lightweight structure of the catalytic media means that a pump with a capacity of 2.5 m³/h is sufficient to flush such a large cylinder, allowing for optimal management of well water.
  • NOVARAM memory:Advanced control electronics store all your configuration settings even in the event of prolonged power outages.
  • Security for a decade:An extended warranty program protects the pressure vessel for 10 years, and the control head and mechanics for 5 years, giving you absolute peace of mind for years to come.

Technical Data

Parametr Wartość
Model OXYLINE PLUS 84
Media volume 84.5 dm³
Min./max. operating pressure 2.5 bar / 8.6 bar
Min./max. operating temperature 4°C - 43°C
Electrical connection 230/50 V/Hz
Inlet/outlet hydraulic connection 1" BSP external thread
Control type Electronic, time-volume
BY-PASS valve Optional
Media operating parameters (pH) 5.8 - 10.0
Max. peak flow rate 3.0 m³/h
Nominal flow rate - operation 1.9 m³/h
Pump capacity required for media backwash 2.5 m³/h
Width 340 mm
Height 1900 mm
Depth 330 mm
Depth including bypass 435 mm
Inlet/outlet height 1745 mm
Inlet/outlet height, including bypass 1745 mm
Tank dimensions 14×65

Downloadable files

PDF Icon SUPREME OXYLINE85 PLUS | Water iron remover PDF PDF Icon SUPREME OXYLINE85 PLUS | Water iron remover PDF Karta katalogowa

The composition of the set

1-SUPREME OXYLINE84 water iron remover 1pc
2-230/12 V AC, 50 Hz transformer 1pc
3-Installation and programming manual 1pc
4-Valve connection kit 1pc

SUPREME OXYLINE86 PLUS – Maximum iron removal power without a gram of chemicals!

Are you looking for a heavy-duty device that can handle very high water consumption and extreme levels of iron, manganese, and hydrogen sulfide? SUPREME OXYLINE86 PLUS is one of the largest iron removers in the series, designed to protect extensive installations where smaller models simply cannot cope.

100% natural regeneration

The system draws only ambient air, creating an air cushion inside the cylinder. This eliminates the cumbersome obligation of purchasing, storing, and dosing chemical regenerants.

OXYLINE28 PLUS 2

Effectiveness at low pH (from 5.8)

Katalox Light™ media perfectly handle water that is too acidic for traditional filtration systems to effectively remove iron.

OXYLINE28 PLUS 1

Intelligent air control

In the case of an exceptionally high hydrogen sulfide content, the water requires more oxygen. The CLACK IMPRESSION valve can automatically replace the air pocket in the middle of the operating cycle, ensuring continuous effectiveness.

Security for a decade

The extended warranty program covers the pressure vessel for 10 years and the head and mechanical components for 5 years, giving you absolute peace of mind for years to come.
