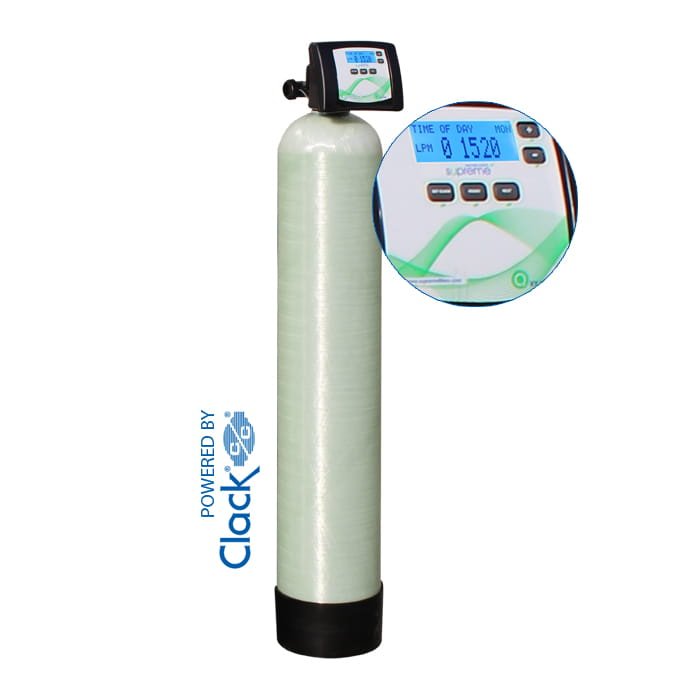

SUPREME OXYLINE56 PLUS water iron remover – maximum power and natural filtration

SUPREME OXYLINE56 PLUS is a top-class, professional iron removal system designed for facilities with an increased demand for clean water. This unit is equipped with a massive 56.6 dm³ of lightweight Katalox Light™ catalytic media, ensuring excellent reduction of iron, manganese, and hydrogen sulfide compounds, even in water with a low pH (ranging from 5.8 to 10.0)[cite: 29, 30]. The system utilizes innovative aeration technology – during regeneration, an air pocket forms inside the tank (size 13x54 inches), completely eliminating the need for chemicals or additional external aeration devices[cite: 29, 30].

The iron remover's operation is managed by a renowned American CLACK IMPRESSION control valve (time-volumetric) with built-in NOVARAM memory, which preserves settings in the event of a power failure[cite: 29, 30]. The OXYLINE56 PLUS model offers a nominal operating flow of 1.6 m³/h, with the potential to reach a peak flow of 2.3 m³/h. Thanks to the use of lightweight media, a pump capacity of 2.1 m³/h is sufficient for proper backwashing. The unit, measuring 1580 mm in height, 335 mm in width, and 335 mm in depth, is perfectly suited for use with modern diaphragm pressure tanks, where water has no natural contact with air[cite: 29, 30].

Parametry techniczne
Wymiary, dł. x szer. x wys 335 mm, 335 mm, 1580 mm
Zakres filtracji Iron (Fe), Manganese (Mn), Hydrogen sulfide (H₂S)
Typ urządzenia Water iron remover
Producent zaworu sterującego Clack®
Pojemność zbiornika soli Brak danych
Pojemność złoża 56.6 L
Przepływ roboczy, m³/h 2.3
Maksymalne ciśnienie, bar 8.6
Min ciśnienie, Bar 2.5
Dla ilu osób 5-6
Waga 66.5 kg
Gwarancja na urządzenie 10 years
View full details

Adjust the system to your needs

  • Montaż zmiękczacza wody - 1

    Water softener installation

    Water softener installation

    ×

    Request a Quote

    Water softener installation

    Thank you! Your request has been sent. We will contact you shortly.
  • Przyłącze kątowe do systemów z serii OXYLINE - 1

    Angle connector for OXYLINE series systems

    Angle connector for OXYLINE series systems

    80,00 zł
    80,00 zł
  • Zawór BY-PASS do systemów OXYLINE i OXYLINE PLUS | UST-M - 1

    BY-PASS valve for OXYLINE and OXYLINE PLUS systems | UST-M

    BY-PASS valve for OXYLINE and OXYLINE PLUS systems | UST-M

    149,00 zł
    149,00 zł
  • Syfon BWT do zmiękczacza wody + Zestaw przyłączeniowy | BWT - 1

    BWT water softener siphon + Connection kit | BWT

    BWT water softener siphon + Connection kit | BWT

    99,00 zł
    99,00 zł

Key Features

Key advantages of the SUPREME OXYLINE56 PLUS model:

  • Maximum capacity (56.6 L of media):The largest amount of specialized media in the system ensures a stable, high flow rate (1.6 m³/h nominal), ideal for large households with several bathrooms.
  • Chemical-free filtration:Forget about the hassle of buying and adding potassium permanganate. The device uses only air for regeneration, creating an air pocket directly inside the tank.
  • Effectiveness at low pH (from 5.8):High-quality catalytic media handles water perfectly, which is too acidic for traditional systems to effectively remove iron.
  • Compatibility with diaphragm pressure tanks:The system does not require large, external aerators and works perfectly with modern membrane tanks.
  • Intelligent air exchange:In the case of extreme hydrogen sulfide concentrations, the valve allows for the programming of additional air exchange between main regeneration cycles, maintaining the highest media efficiency.
  • Efficient media backwashing:The lightweight structure of the media means that despite the huge tank size, a well pump with a capacity of 2.1 m³/h is sufficient to flush out accumulated deposits, optimizing water consumption.
  • Warranty up to 10 years:An extended protection program confirms the device's reliability, offering a decade of warranty on the tank and 5 years on the control head with mechanical parts.

Technical Data

Parametr Wartość
Model OXYLINE PLUS 56
Media volume 56.6 dm³
Min./max. operating pressure 2.5 bar / 8.6 bar
Min./max. operating temperature 4°C - 43°C
Electrical connection 230/50 V/Hz
Inlet/outlet hydraulic connection 1" BSP male thread
Control type Electronic, time-volume
BY-PASS valve Optional
Media operating parameters (pH) 5.8 - 10.0
Max. peak flow rate 2.3 m³/h
Nominal flow rate - operation 1.6 m³/h
Pump capacity required for media backwash 2.1 m³/h
Width 335 mm
Height 1580 mm
Depth 335 mm
Depth including bypass 365 mm
Inlet/outlet height 1440 mm
Inlet/outlet height, including bypass 1440 mm
Tank dimensions 13×54

Downloadable files

PDF Icon SUPREME OXYLINE56 PLUS | Water iron remover PDF PDF Icon SUPREME OXYLINE56 PLUS | Water iron remover PDF Karta katalogowa

The composition of the set

1-SUPREME OXYLINE56 water iron remover 1pc
2-Transformer 230/12 V AC, 50 Hz 1pc
3-Installation and programming manual 1pc
4-Valve connection kit 1pc

SUPREME OXYLINE56 PLUS – Uncompromising protection against rusty water for a large home!

Does your well water leave hard-to-remove rust stains on fixtures, do you detect a metallic aftertaste or an unpleasant hydrogen sulfide odor, and is your family's water demand above average? OXYLINE56 PLUS is the most powerful iron removal system in its series, which will solve these problems in a 100% ecological way, protecting your entire home installation and most expensive household appliances.

Eco-friendly work without chemicals

Forget about the hassle of buying and dosing chemical products. The device regenerates itself using only water and ambient air.

OXYLINE28 PLUS 2

Effectiveness at low pH (from 5.8)

Katalox Light™ media perfectly handles water that is too acidic for traditional filtration systems to effectively remove iron.

OXYLINE28 PLUS 1

CLACK IMPRESSION control valve (USA)

Top-quality components guarantee reliable operation, and the internal NOVARAM memory safely stores your settings in the event of a power failure.

Warranty up to 10 years

The extended program provides complete peace of mind for years – 10 years for the pressure tank, 5 years for the valve and mechanics, and 2 years for the electronics.
