SUPREME OXYLINE42 PLUS | Water iron remover

Name: SUPREME OXYLINE42 PLUS | Water iron remover
Brand: Supreme
Price: 4050.0 PLN
Availability: InStock

4.050,00 zł

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Ships in: 5 days
Safe shopping - 14 days to return
Shipping: FREE

MULTIDISCOUNTS

Chcę otrzymać ofertę cenową na montaż, uruchomienie i konfigurację tego produktu.

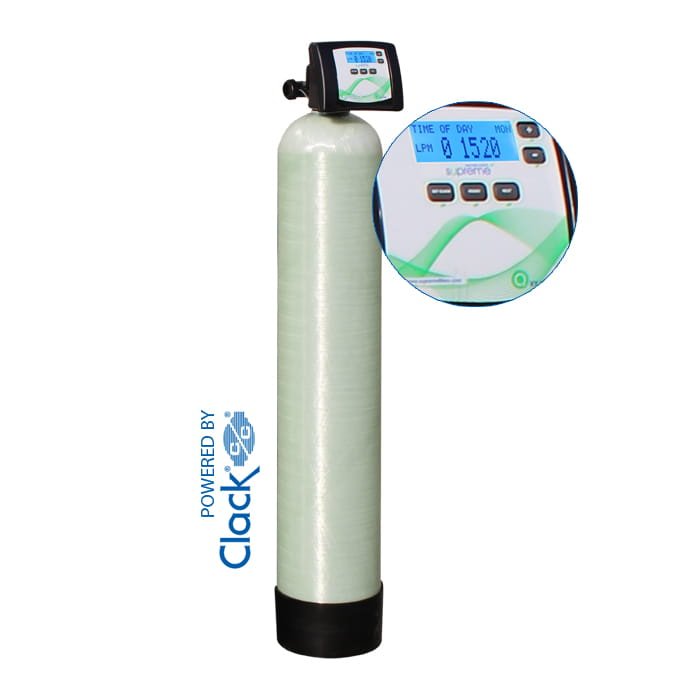

SUPREME OXYLINE42 PLUS water iron removal filter – higher efficiency, natural filtration

SUPREME OXYLINE42 PLUS is a highly efficient, professional iron removal system designed for single-family homes and installations with higher water demand. The device utilizes a full 42.45 dm³ of an innovative, lightweight catalytic media (Katalox Light™), which allows for excellent reduction of iron, manganese, and hydrogen sulfide, even with low water pH (in the range of 5.8 to 10.0). The purification process is based on creating an air cushion inside an enlarged tank (12x52 inches), completely eliminating the need for chemical regenerants or additional aeration systems.

Maintenance-free operation is ensured by an advanced time-volume electronic controller with a backlit LCD screen. The OXYLINE42 PLUS model features a nominal flow rate of 1.4 m³/h and a maximum instantaneous flow rate reaching 2.1 m³/h. The optimized media weight means that a pump with a capacity of 1.8 m³/h is sufficient for effective backwashing. The device, measuring 1520 mm in height, 310 mm in width, and 325 mm in depth (435 mm with bypass), works perfectly with modern diaphragm pressure tanks where water does not come into contact with air, as well as with classic flow-through tanks.

Parametry techniczne
Wymiary, dł. x szer. x wys	325 mm, 310 mm, 1520 mm
Zakres filtracji	Iron (Fe), Manganese (Mn), Hydrogen sulfide (H₂S)
Typ urządzenia	Water iron remover
Producent zaworu sterującego	Clack®
Pojemność zbiornika soli	Brak danych
Pojemność złoża	42.45 L
Przepływ roboczy, m³/h	2.1
Maksymalne ciśnienie, bar	8.6
Min ciśnienie, Bar	2.5
Dla ilu osób	5-6
Waga	59.5 kg
Gwarancja na urządzenie	10 years

View full details

Key Features

Key benefits of choosing the OXYLINE42 PLUS model:

Increased capacity (42.45 L of filter media):Larger tank capacity is an ideal solution for homes with higher water consumption, ensuring a stable nominal flow rate of 1.4 m³/h.
100% eco-friendly operation:Forget about purchasing and dosing chemicals. The system aerates water directly in the tank, using only ambient air to effectively precipitate iron and hydrogen sulfide.
Effectiveness at low pH (from 5.8):Thanks to a specialized catalytic filter media, the iron remover handles water that would be too acidic for traditional systems to properly precipitate contaminants.
Compatibility with diaphragm pressure tanks:The device is fully adapted for modern membrane tanks, where water has no natural contact with air.
Intelligent air control:For water with an extremely high hydrogen sulfide content, the controller allows for setting an additional air cushion exchange (e.g., halfway through the work cycle).
Economical regeneration:The lightweight catalytic media requires significantly less water for flushing – a pump with a capacity of 1.8 m³/h is sufficient, which saves water in the household well.
Warranty up to 10 years:An extended manufacturer's program protects the pressure tank for a full decade.

Technical Data

Parametr	Wartość
Model	OXYLINE PLUS 42
Bed volume	42.45 dm³
Min./max. operating pressure	2.5 bar / 8.6 bar
Min./max. operating temperature	4°C - 43°C
Electrical connection	230/50 V/Hz
Inlet/outlet hydraulic connection	1" BSP male thread
Control type	Electronic, time-volume
BY-PASS valve	Optional
Bed operating parameters (pH)	5.8 - 10.0
Max. peak flow	2.1 m³/h
Nominal flow - operation	1.4 m³/h
Pump capacity required for bed backwashing	1.8 m³/h
Width	310 mm
Height	1520 mm
Depth	325 mm
Depth including bypass	365 mm
Inlet/outlet height	1395 mm
Inlet/outlet height, including bypass	1395 mm
Tank dimensions	12×52

Downloadable files

SUPREME OXYLINE42 PLUS | Water iron remover PDF

SUPREME OXYLINE42 PLUS | Water iron remover PDF Karta katalogowa

The composition of the set

1-SUPREME OXYLINE42 water iron remover	1pc
2-Transformer 230/12 V AC, 50 Hz	1pc
3-Installation and programming manual	1pc
4-Valve connection kit	1pc

SUPREME OXYLINE42 PLUS – Reliable protection for your home against rusty water!

Does your installation require higher performance than standard iron removal systems, and does the quality of your well water leave much to be desired? SUPREME OXYLINE42 PLUS is a device designed for tough tasks that will improve your water parameters 100% naturally, protecting your fixtures and home appliances.

100% organic work

Forget about buying and dosing chemicals. The system aerates the water directly inside the tank, using only ambient air to effectively precipitate iron and hydrogen sulfide.

Efficacy at low pH (from 5.8)

Thanks to its specialized catalytic media, the iron removal system can handle water that would be too acidic for traditional systems to effectively precipitate contaminants.

CLACK IMPRESSION control valve (USA)

Top-quality components guarantee reliable operation, and the internal NOVARAM memory safely stores your settings in the event of a power failure.

Warranty up to 10 years

The manufacturer's extended program protects the pressure vessel for up to a decade.
