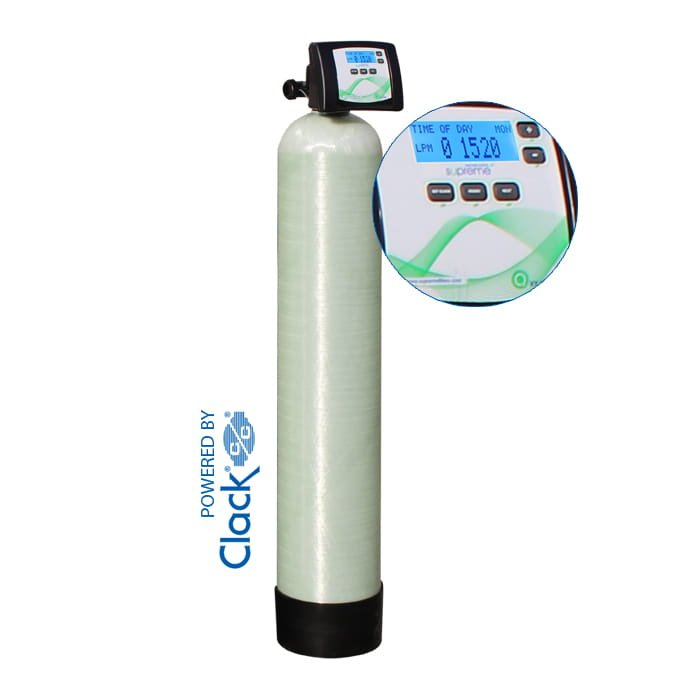

• SUPREME OXYLINE28 PLUS | Odżelaziacz wody - 1
1 1

Supreme

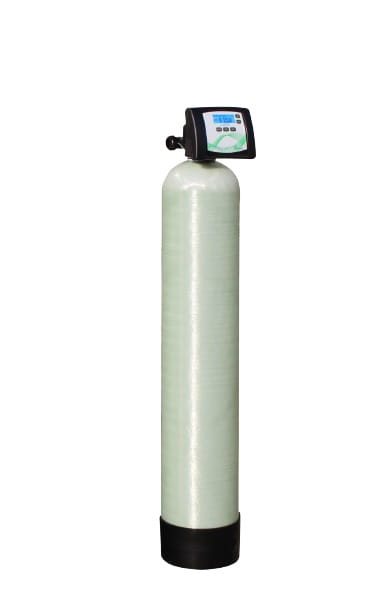

SUPREME OXYLINE28 PLUS | Water Iron Remover

SUPREME OXYLINE28 PLUS | Water Iron Remover

3.660,00 zł
3.660,00 zł
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Ships in: 5 days
  • Safe shopping - 14 days to return
  • Shipping: FREE
  • MULTIDISCOUNTS

Przelewy24 Raty
Tu kupisz na RATY 0%
LeaseLink
Dostępny LEASING dla firm

SUPREME OXYLINE28 PLUS water iron remover – natural filtration power of Katalox Light™ media

SUPREME OXYLINE28 PLUS is a modern, professional water iron remover that utilizes innovative aeration technology to effectively reduce iron, manganese, and hydrogen sulfide compounds. This model stands out due to the use of the highest quality lightweight catalytic media, Katalox Light™ (with a capacity of 28.3 dm³), which allows for effective operation even at lower water pH levels (the pH range for the media is 5.8 - 10.0). The device eliminates the need for any chemicals for regeneration or external aeration systems. A special air pocket is created inside the large tank (10x54 inches), and the electronic controller (time-volume based) allows for setting an additional air exchange between regeneration cycles, e.g., halfway through the operating cycle, which is extremely useful under high oxygen demand conditions[cite: 25, 26].

The heart of the system is the reliable American CLACK IMPRESSION control valve, which ensures stable and long-lasting operation at a maximum instantaneous flow rate of 1.8 m³/h (nominal flow rate is 1.1 m³/h)[cite: 25, 26]. A major advantage of the device, with dimensions of 1580 mm x 255 mm x 285 mm (depth with bypass is 365 mm), is its ability to work directly and seamlessly with any type of pressure tank – both diaphragm tanks, where water does not come into contact with air, and flow-through tanks[cite: 25, 26]. Furthermore, the lack of a need to install an additional contact tank saves valuable space in the boiler room. The manufacturer offers an extended warranty program, covering, among other things, 10 years for the pressure tank and 5 years for the valve and mechanical parts.

Parametry techniczne
Wymiary, dł. x szer. x wys 285 mm, 255 mm, 1580 mm
Zakres filtracji Iron (Fe), Manganese (Mn), Hydrogen sulfide (H₂S)
Typ urządzenia Water iron remover
Producent zaworu sterującego Clack®
Pojemność zbiornika soli Brak danych
Pojemność złoża 28.3 L
Przepływ roboczy, m³/h 1.8
Maksymalne ciśnienie, bar 8.6
Min ciśnienie, Bar 2.5
Dla ilu osób 2-4
Waga 46 kg
Gwarancja na urządzenie 10 years
View full details

Adjust the system to your needs

  • Montaż zmiękczacza wody - 1

    Water softener installation

    Water softener installation

    ×

    Request a Quote

    Water softener installation

    Thank you! Your request has been sent. We will contact you shortly.
  • Przyłącze kątowe do systemów z serii OXYLINE - 1

    Angle connector for OXYLINE series systems

    Angle connector for OXYLINE series systems

    80,00 zł
    80,00 zł

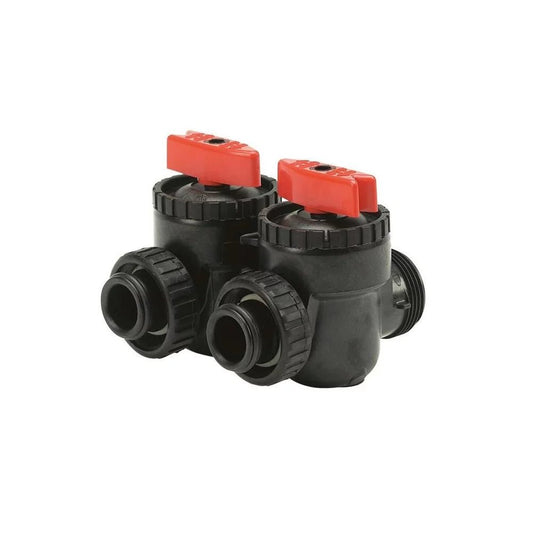

  • Zawór BY-PASS do systemów OXYLINE i OXYLINE PLUS | UST-M - 1

    BY-PASS valve for OXYLINE and OXYLINE PLUS systems | UST-M

    BY-PASS valve for OXYLINE and OXYLINE PLUS systems | UST-M

    149,00 zł
    149,00 zł

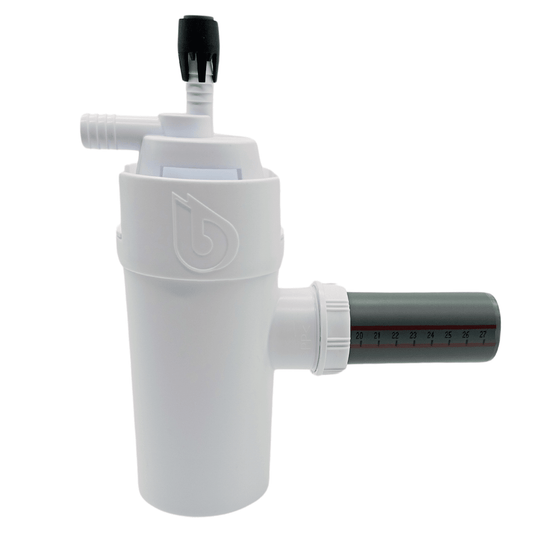

  • Syfon BWT do zmiękczacza wody + Zestaw przyłączeniowy | BWT - 1

    BWT water softener siphon + Connection kit | BWT

    BWT water softener siphon + Connection kit | BWT

    99,00 zł
    99,00 zł

Key Features

Why choose SUPREME OXYLINE28 PLUS?

  • Safe and 100% ecological filtration:Forget about the hassle of refilling potassium permanganate! The system regenerates exclusively by drawing in atmospheric air and flushing with water.
  • Katalox Light™ catalytic media:Thanks to the use of specialized media (28.3 dm³), the iron remover performs excellently with water having a lower pH (as low as 5.8) and consumes less water for backwashing (required pump capacity is only 1.2 m³/h).
  • Compatibility with any pressure tank:Do you have a modern diaphragm pressure tank? This system was designed specifically to work with such tanks, where water does not come into natural contact with air.
  • CLACK IMPRESSION control valve (USA):A reliable electronic valve with a backlit LCD panel and built-in NOVARAM memory ensures settings are maintained even during power outages.
  • Intelligent air exchange:The system independently vents used air and draws in fresh air (even between full regeneration cycles), ensuring continuous and effective reduction of iron and hydrogen sulfide.
  • Space saving in the boiler room:The lack of a need to install large external aerators and contact tanks makes this device extremely compact.
  • Up to 10 years of warranty:An extended program provides peace of mind for years – 10 years for the pressure vessel, 5 years for the valve head with mechanical parts, and 2 years for the electronics.

Technical Data

Parametr Wartość
Model OXYLINE PLUS 28
Media volume 28.3 dm³
Min./max. operating pressure 2.5 bar / 8.6 bar
Min./max. operating temperature 4°C - 43°C
Electrical connection 230/50 V/Hz
Inlet/outlet hydraulic connection 1" BSP male thread
Control type Electronic, time-volume
BY-PASS valve Optional
Media operating parameters (pH) 5.8 - 10.0
Max. instantaneous flow 1.8 m³/h
Nominal flow - operation 1.1 m³/h
Pump capacity required for backwashing the media 1.2 m³/h
Width 255 mm
Height 1580 mm
Depth 285 mm
Depth including bypass 365 mm
Inlet/outlet height 1440 mm
Inlet/outlet height, including bypass 1440 mm
Cylinder dimensions 10×54

Downloadable files

PDF Icon SUPREME OXYLINE28 PLUS | Water Iron Remover PDF PDF Icon SUPREME OXYLINE28 PLUS | Water Iron Remover PDF Karta katalogowa

The composition of the set

1-SUPREME OXYLINE28 iron removal filter 1pc
2-Transformer 230/12 V AC, 50 Hz 1pc
3-Installation and programming manual 1pc
4-Valve connection kit 1pc

SUPREME OXYLINE28 PLUS – No more rusty water, safe and chemical-free!

Does your well water leave reddish stains on your fixtures, have a metallic taste, or a distinct hydrogen sulfide odor? The OXYLINE28 PLUS iron removal system from the renowned SUPREME brand is an advanced solution that solves these problems, protecting your plumbing and household appliances without high operating costs.

Safe and 100% ecological filtration

Forget about the hassle of refilling potassium permanganate! The system regenerates solely through atmospheric air intake and water flushing.

OXYLINE28 PLUS 2

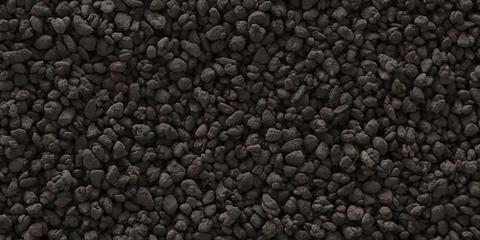

Katalox Light™ catalytic media

Thanks to the use of a specialized filter bed (28.3 dm³), the iron remover performs excellently with water having a lower pH (as low as 5.8) and consumes less water for backwashing (the required pump capacity is only 1.2 m³/h).

OXYLINE28 PLUS 1

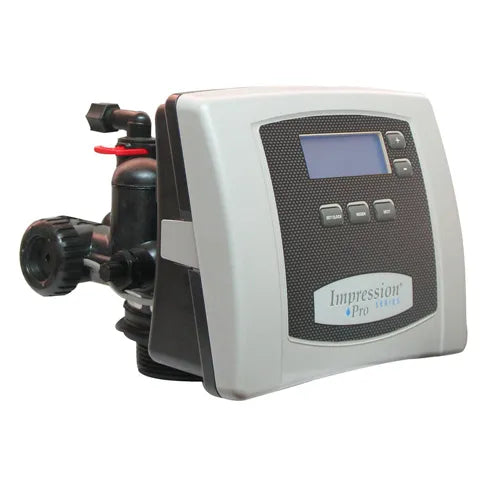

CLACK IMPRESSION control valve (USA)

A reliable electronic valve with a backlit LCD panel and built-in NOVARAM memory ensures settings are retained even during a power outage.

Space saving in the boiler room

The lack of need for large external aerators and contact tanks makes this device extremely compact.
