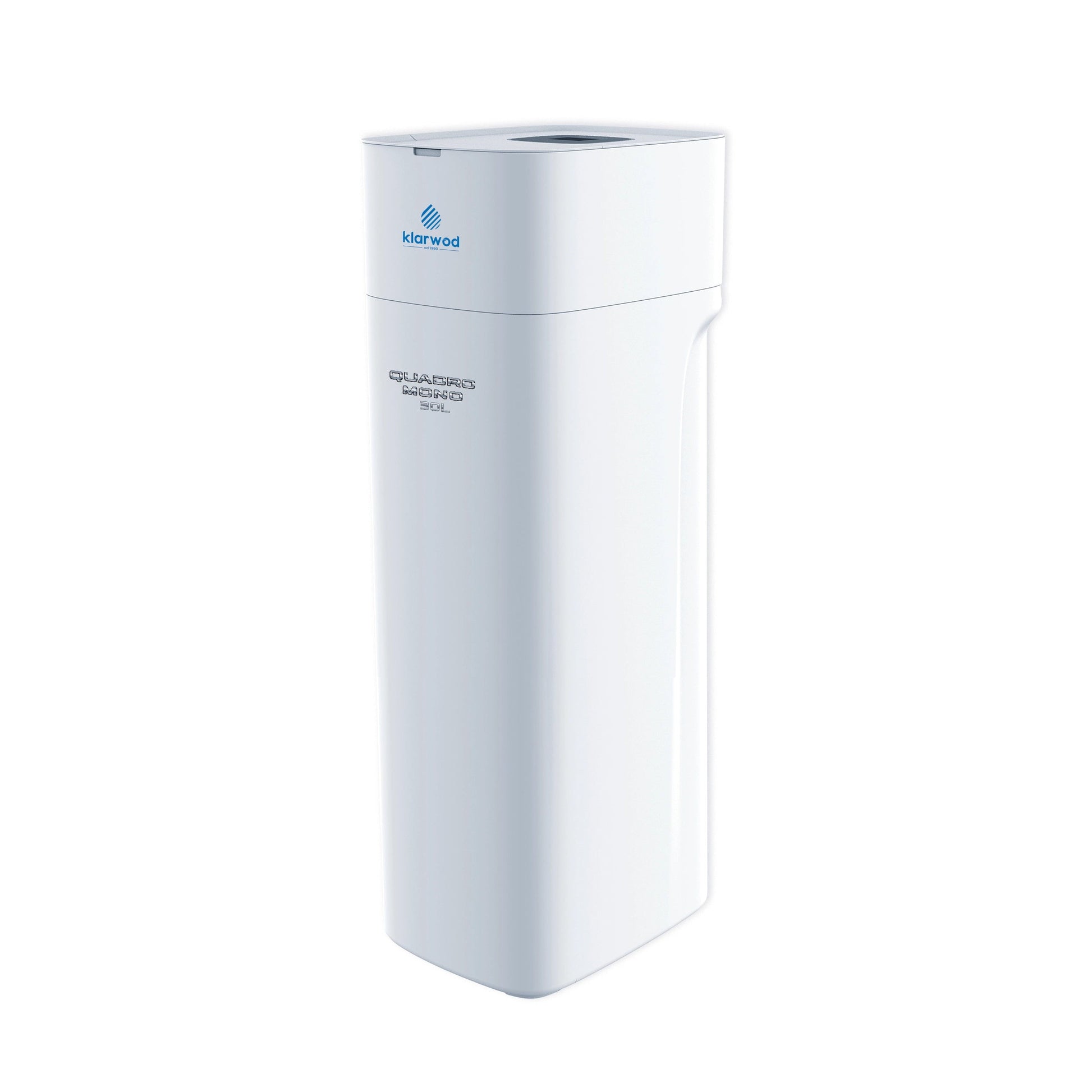

Modern Water Softener CS QUADRO MONO 25 with Monosperic Resin
The CS QUADRO MONO 25 water softener is an advanced device that, thanks to the use of innovative, organic solvent-free monosperic ion-exchange resin, guarantees the highest softening efficiency and extended lifespan. The 25 liters of LEWATIT S 6368 A media used in this model has a macroporous structure, ensuring extremely effective sorption of organic contaminants. The maximum water flow is 1.9 m³/h, and the high ion exchange capacity reaches 82.5 m³/°dH. The entire unit is enclosed in an elegant, slim casing measuring 33 x 44 x 106 cm, which saves space and fits modern interiors.

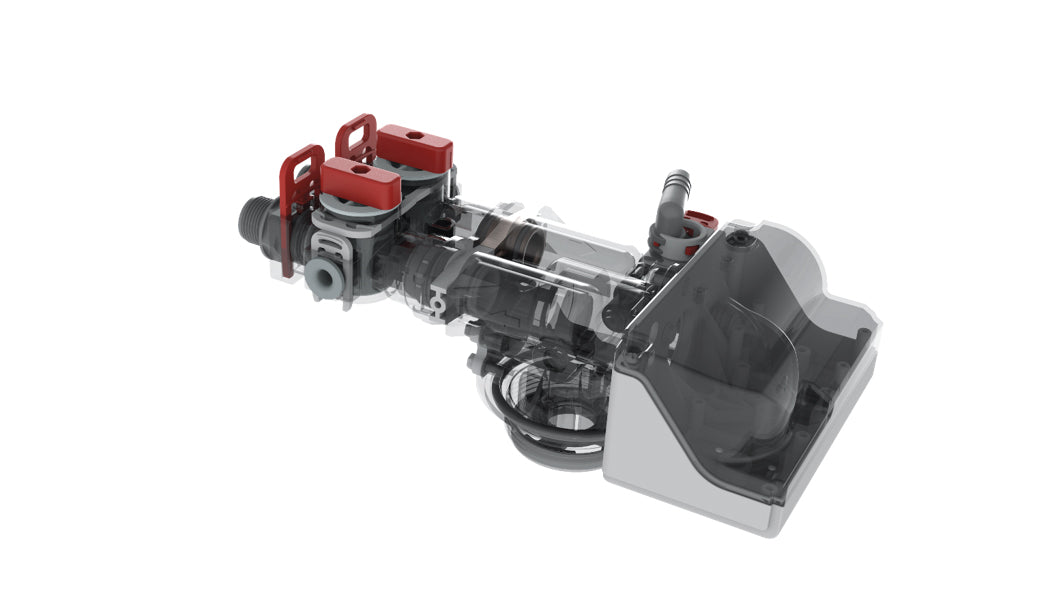

The innovative, reliable, and easy-to-use control head allows for full automation and maintenance-free operation of the system. The built-in free chlorine generator effectively prevents the growth of microorganisms inside the tank, and settings are controlled via an intuitive, touch-sensitive display with a Polish menu. The device uses counter-current regeneration (UP-FLOW), which reduces water and salt consumption by up to 30% compared to standard models, using only about 2.5 kg of salt per cycle.
| Parametry techniczne | |
|---|---|
| Wymiary, dł. x szer. x wys | 435 mm, 332 mm, 1060 mm |
| Zakres filtracji | Water hardness, Organic compounds |
| Typ urządzenia | Water softener |
| Pojemność zbiornika soli | 56 kg |
| Pojemność złoża | 25 L |
| Przepływ roboczy, m³/h | 1.9 |
| Maksymalne ciśnienie, bar | 6.0 |
| Min ciśnienie, Bar | 2.0 |
| Dla ilu osób | 4-5 |
| Waga | 39 kg |
| Gwarancja na urządzenie | 2 years |
Collapsible content
Key Features
Technical Data
| Parametr | Wartość |
|---|---|
| Model | CS18H-1035 |
| Regeneration type | Counter-current UPFLOW |
| Integrated meter in bypass | Yes |
| Resin volume | 25 l |
| Resin type | Ion-exchange resin |
| Media type | Polyspheric resin (Quadro) / Monospheric resin (Quadro Mono) |
| Tank size | 10×35 |
| Salt storage capacity | 56 kg |
| Flow rate | 1.9 m³/h |
| Salt used for regeneration | 2.5 kg |
| Weight | 39 kg |
| Connection size | 3/4" or 1" |
| Power supply | 220-240 V AC 50/60Hz, 12 V AC 650 mA |
| Water temperature | 1-30°C |
| Water pressure | 2-6 bar |
KLARWOD CS QUADRO MONO 25 | Water softener PDF
The composition of the set
| 1-KLARWOD CS QUADRO MONO 25 | 1 pc |
| 2-V24 Power Supply | 1 pc |
| 3-CONNECTORS | 2 pcs |
| 4-BYPASS WRENCH | 1 pc |
| 5-SILICONE GREASE | 1 pc |
UP-FLOW regeneration and huge savings

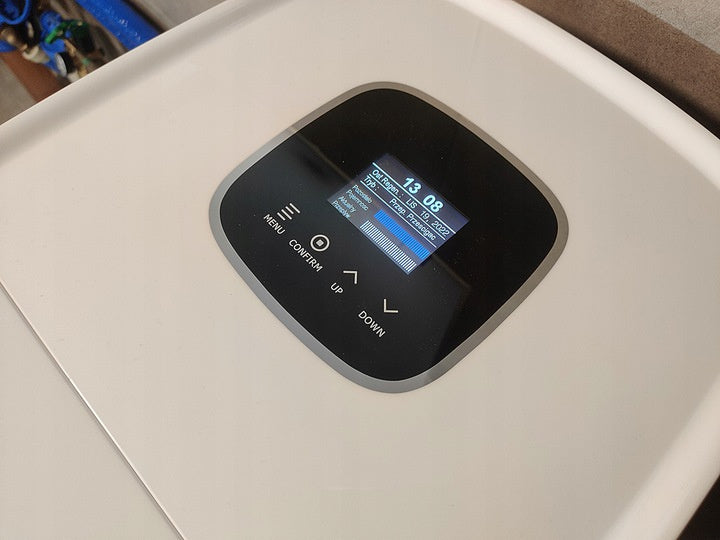

Intuitive, touchscreen display in Polish
Free chlorine generator
Comprehensive equipment and safety
