Ecosoft 3P ECO 9 ¾" filter housing with Venturi valve | Pre-filter

Ecosoft 3P ECO 9 ¾" – filter housing with a venturi valve and drain

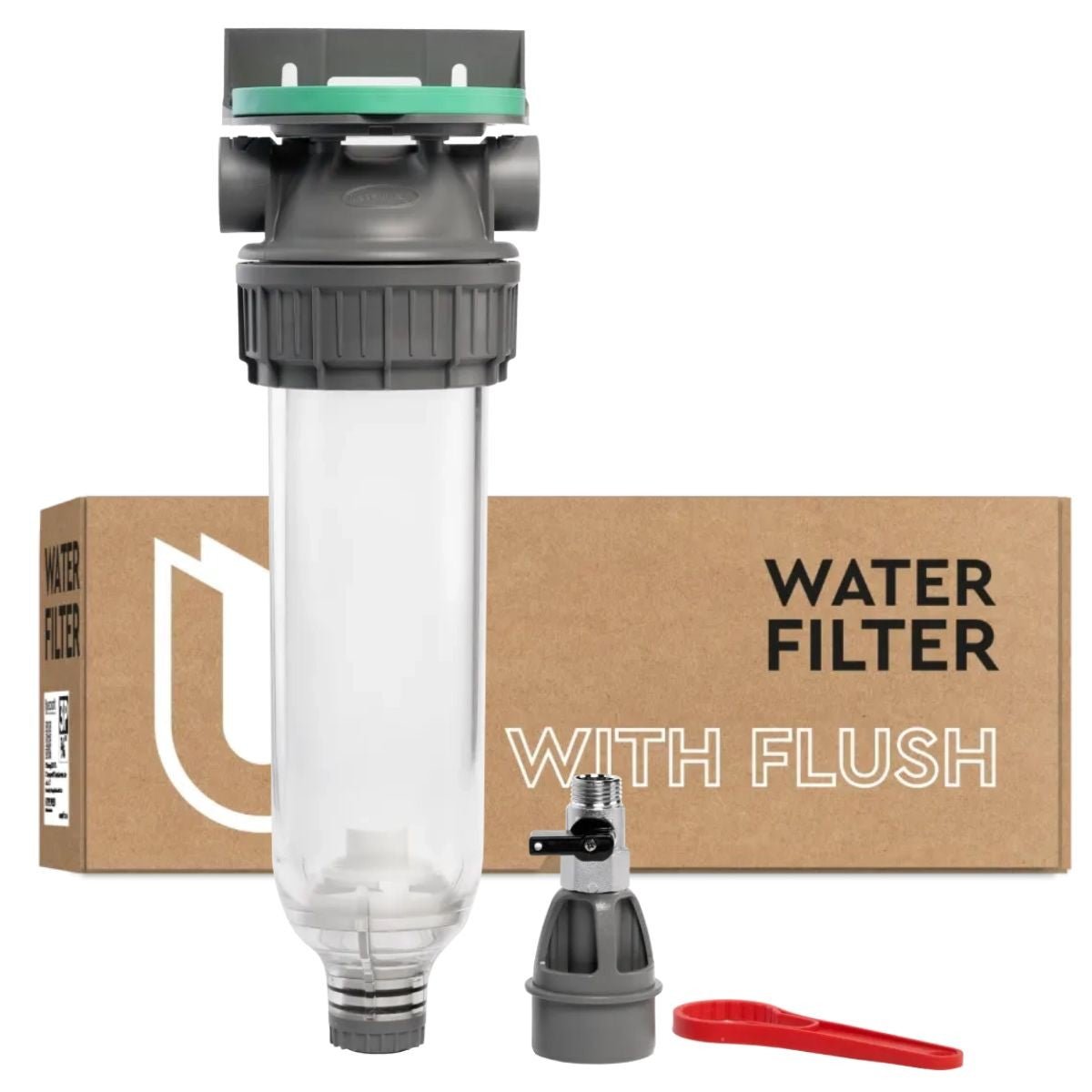

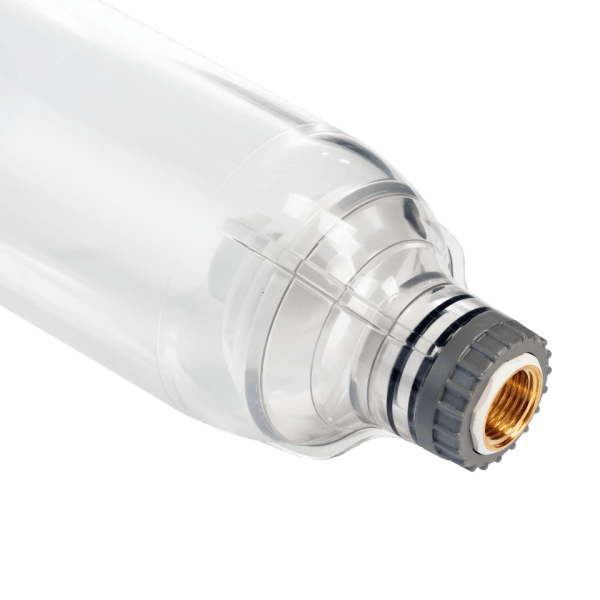

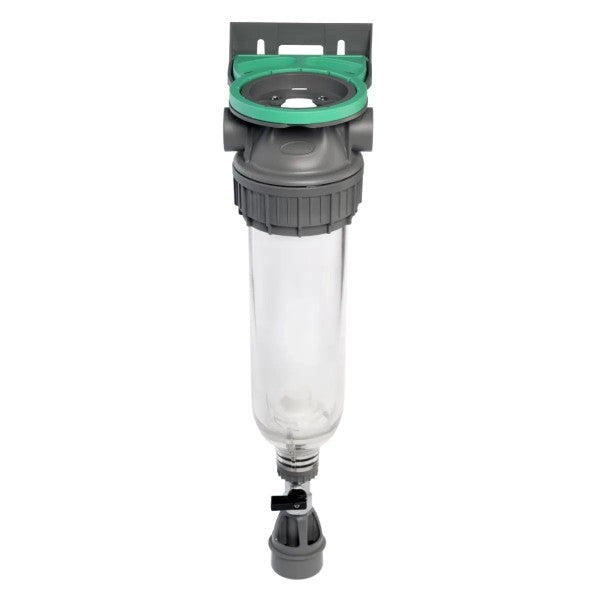

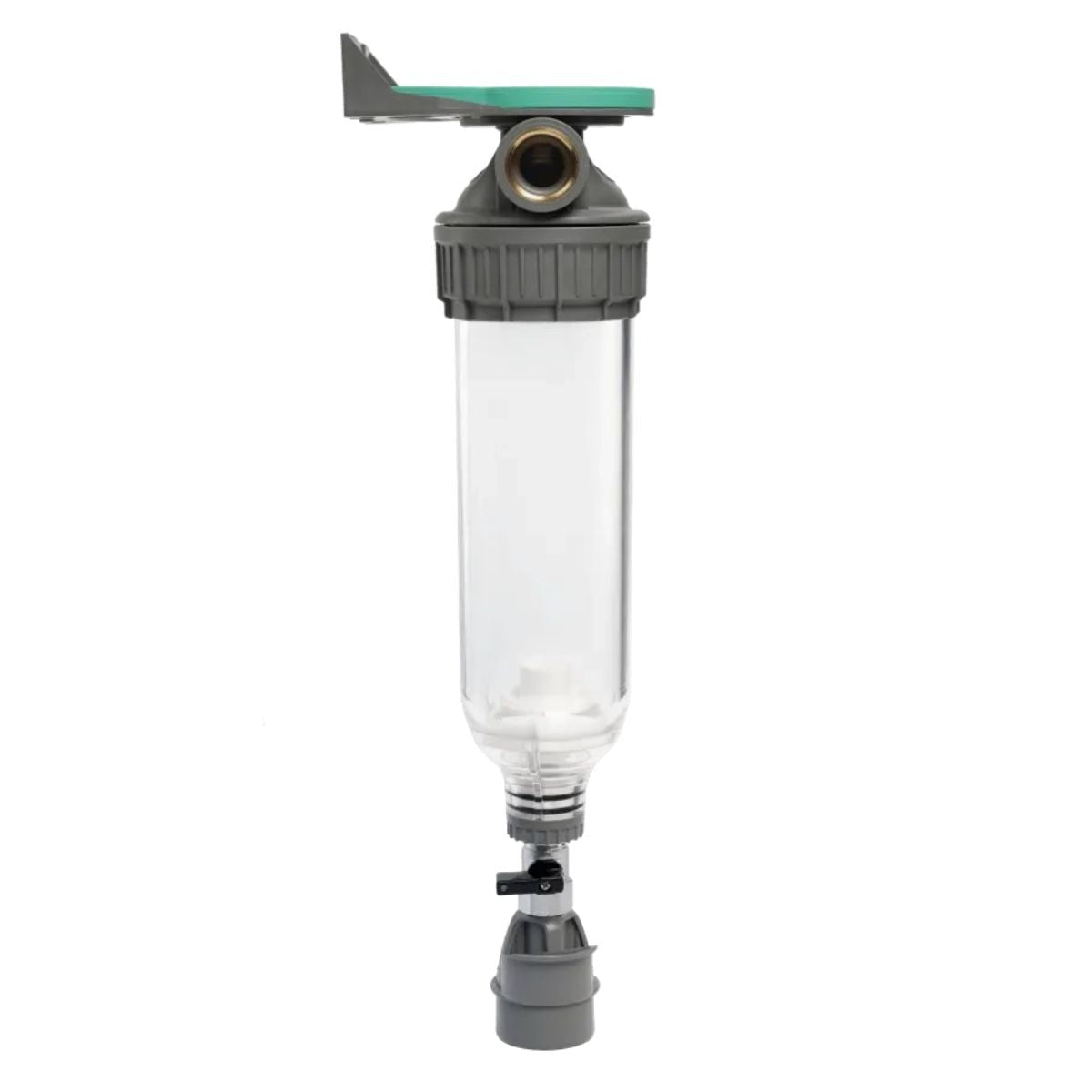

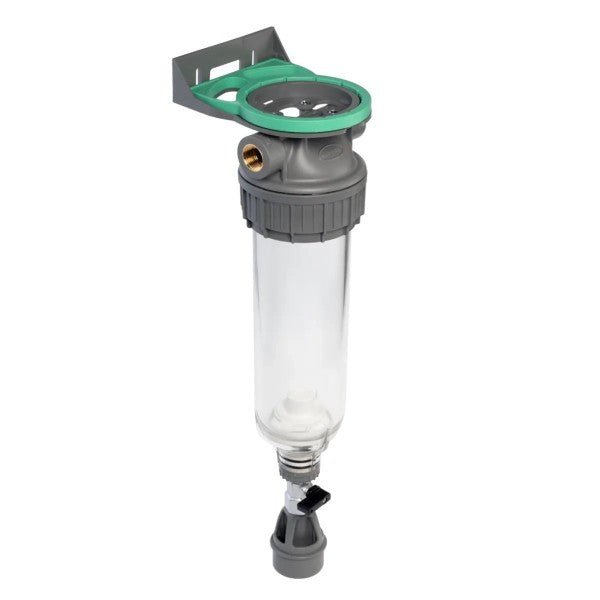

Ecosoft 3P ECO 9 ¾" is a three-piece housing designed for water filtration in residential and commercial systems. Equipped with a transparent PET sump, it allows for ongoing monitoring of the cartridge condition and the amount of accumulated impurities. The model is available with a 3/4" or 1" inlet and outlet connection, allowing you to choose the variant suitable for your installation parameters.

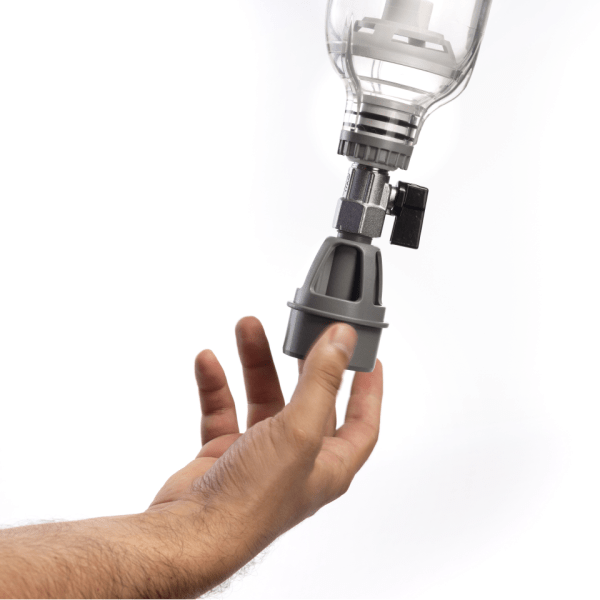

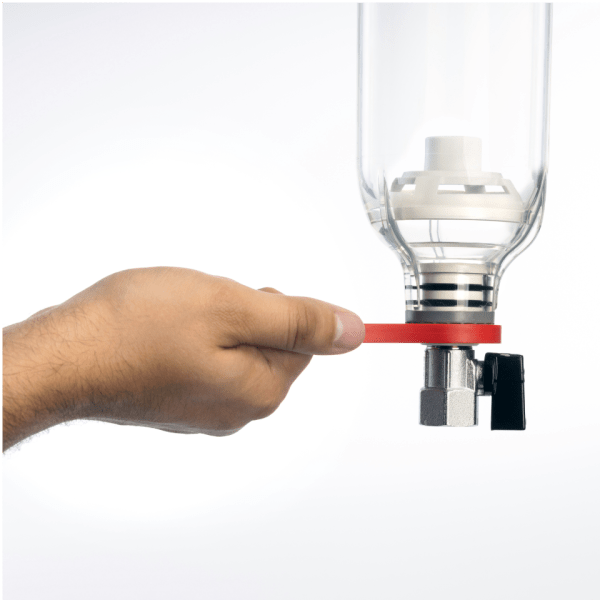

One of the most important advantages of the housing is the drain system with a venturi valve, which facilitates the removal of accumulated sediment from the sump. The specially shaped design of the sump promotes effective discharge of impurities, and the drain allows for more convenient cleaning of the housing during maintenance. This solution reduces the need to frequently disassemble the entire housing.

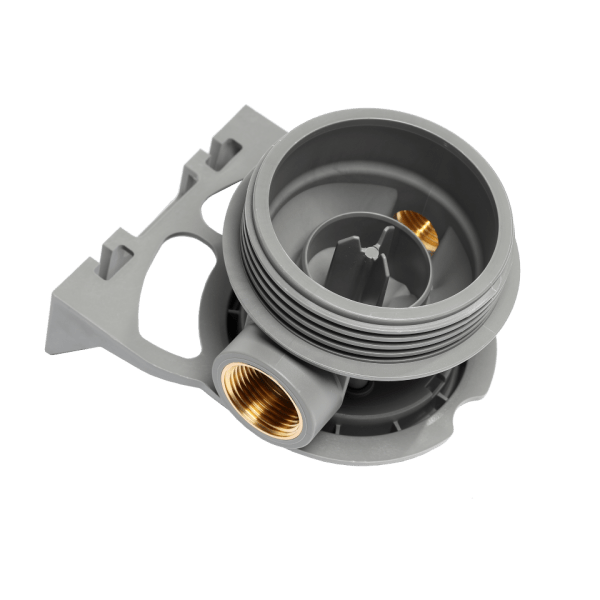

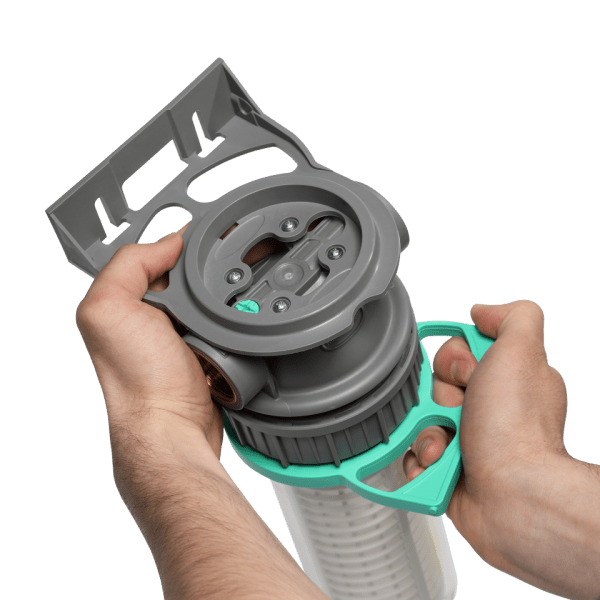

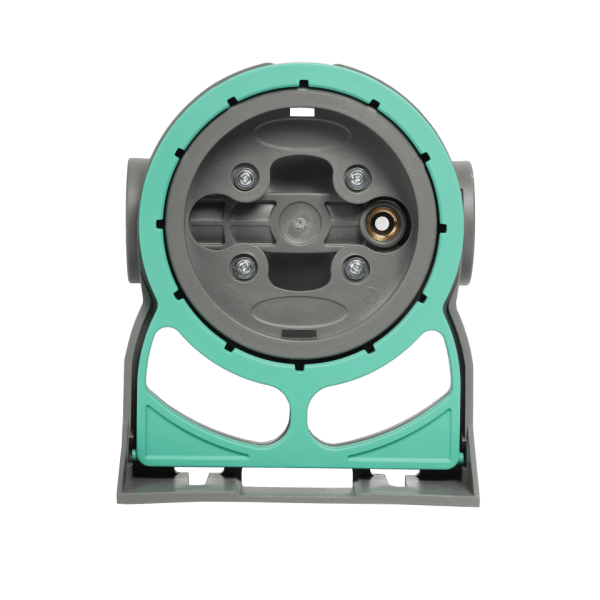

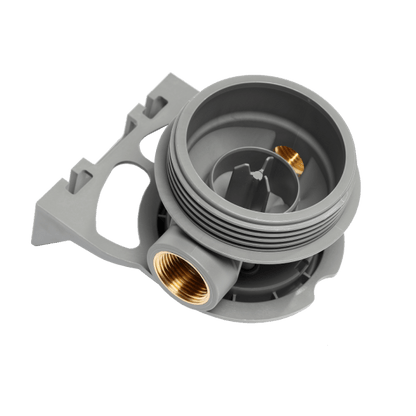

The housing is compatible with three types of filter cartridges: DOE, BIG, and COD3. The head made of polypropylene (PP) with brass connections, the PET sump, the PA nut, and the EPDM seal create a durable structure designed for regular operation. The manufacturer specifies a maximum operating pressure of 8 bar and a water temperature range from +5°C to +50°C.

Ecosoft 3P ECO 9 ¾" is intended for horizontal installation and is supplied as an empty housing without a filter cartridge. Thanks to the possibility of using different types of cartridges, it can be configured according to the needs of the installation, e.g., for reducing mechanical impurities. This is a practical solution for those looking for a durable filter body with a convenient sediment discharge system and easy monitoring of the cartridge status.
