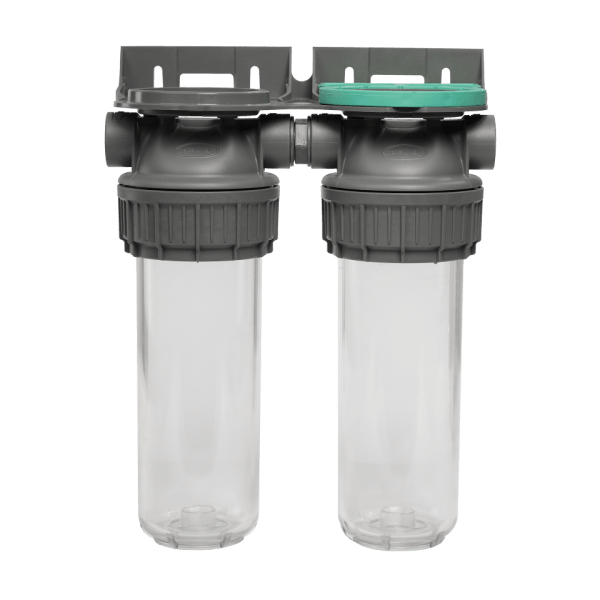

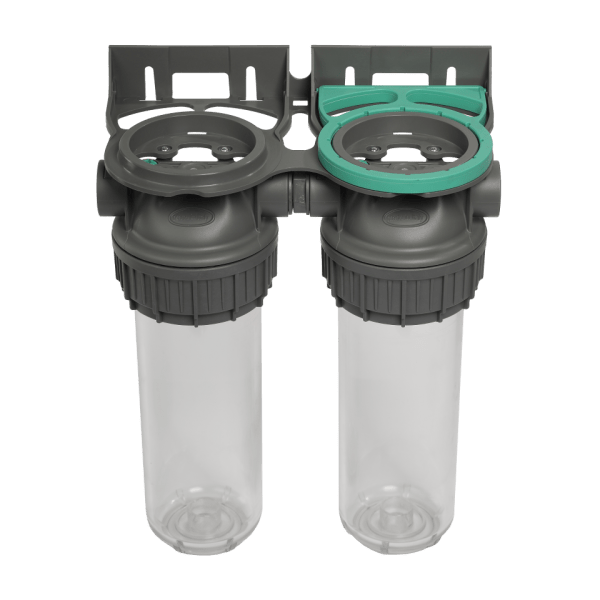

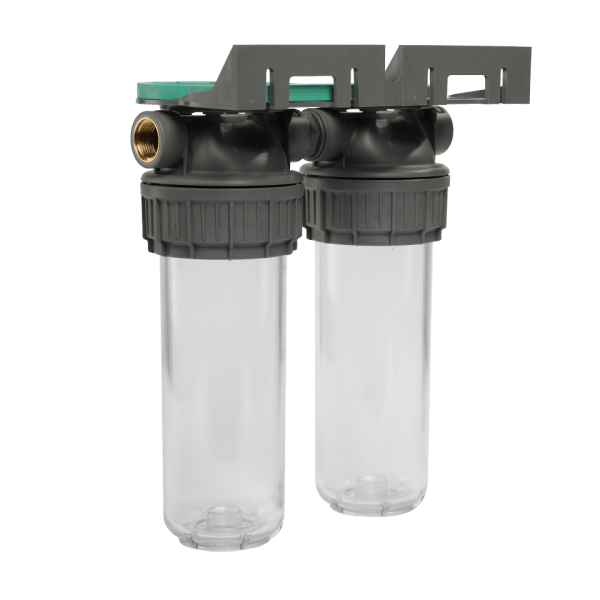

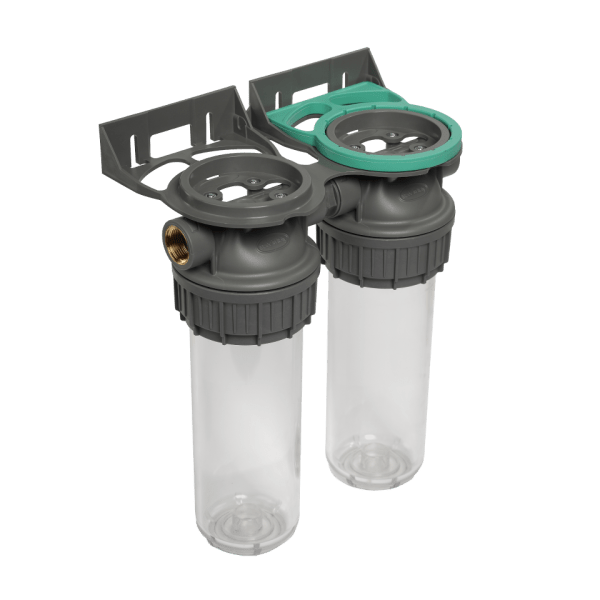

Ecosoft 3P ECO Duplex 9 ¾" – double filter housing
Ecosoft 3P ECO Duplex 9 ¾" is a double housing designed for use with mechanical water filtration cartridges. The use of two independent chambers allows for the installation of two filter cartridges in a single, compact unit, facilitating multi-stage filtration.
The housing features a three-piece design and transparent bowls made of PET, making it easy to monitor the condition of the cartridges without needing to unscrew the body. The head is made of polypropylene (PP) with brass connections, and the seal is ensured by an EPDM gasket. The product is designed for horizontal installation.
The 3P ECO Duplex 9 ¾" model is available in two connection sizes: ¾" and 1". The maximum operating pressure is 8 bar, and the operating temperature range is from +5°C to +50°C. The housing is supplied without filter cartridges, allowing you to select the type best suited to the quality and intended use of the water being filtered.
| Parametry techniczne | |
|---|---|
| Wymiary, dł. x szer. x wys | 263 mm, 111 mm, 330 mm |
| Do wody gorącej | |
| Maksymalne ciśnienie, Bar | 8.0 |
| Typ płukania | Cartridge replacement (manual) |
| Wydajność, m³/h | Performance dependent on insert type |
Collapsible content
Key Features
Technical Data
| Charakterystyka | Wartość |
|---|---|
| Materials | Bowl - polyethylene (PET), Head - polypropylene (PP) with brass connection assemblies |
| Mounting | Threaded |
| O-ring | EPDM |
| Max. Working pressure | 8 |
| Max. Working temperature | From 5°C (41°F) to 50°C (122°F) |
| Mounting | Horizontal |
| Connection | ¾" or 1" |
| Packaging | Empty housing without filter cartridge |
