John Guest PI220808S Elbow Push-Fit 1/4" | Mounting Components

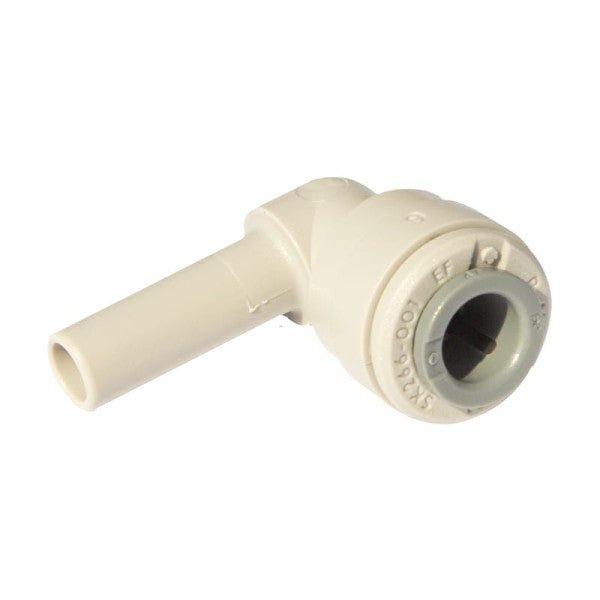

John Guest PI220808S 1/4" Stem Elbow Fitting

John Guest PI220808S is a 90° Stem Elbow fitting designed to connect two John Guest push-fit fittings. The model is equipped with a 1/4" stem, which allows for a swivel connection with a compatible push-fit fitting, facilitating hose routing in areas with limited installation space.

The fitting uses the John Guest push-fit system, allowing for assembly without the need for specialized tools. The stem ensures a secure and tight connection, and the element can be easily disconnected and reassembled if necessary during maintenance or system expansion.

The PI220808S model is used in water filtration and treatment systems, reverse osmosis installations, beverage dispensing, and other systems utilizing John Guest fittings. The Stem Elbow design allows for a 90° change in tubing direction while maintaining small installation dimensions.

The fitting is made of high-quality materials suitable for contact with drinking water. The manufacturer specifies a maximum working pressure of 10 bar and an operating temperature range of +1°C to +65°C for liquids, depending on the medium and operating conditions.
