DMfit AFAB0406C straight fitting 3/8" FPT x 1/4" | Mounting elements

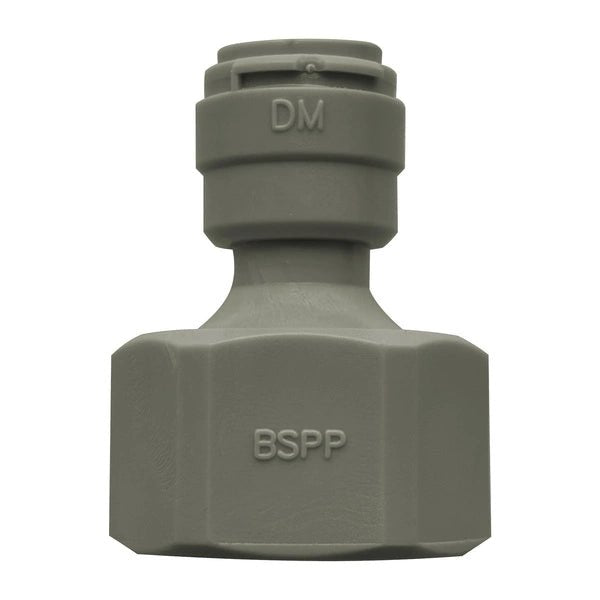

DMfit AFAB0406C straight fitting 3/8" FPT x 1/4"

DMfit AFAB0406C is a straight fitting designed to connect a 1/4" tube to a component with a 3/8" BSPP female thread. The model is used in water filtration and treatment systems, reverse osmosis installations, coffee machines, water dispensers, and other devices using 1/4" tubes.

The fitting uses a quick-connect system for quick tube installation without specialized tools. Simply push the tube in until it stops to achieve a tight connection. Thanks to the integrated seal, installation does not require the use of additional sealing materials on the BSPP conical connection.

The body is made of acetal copolymer (POM), which is characterized by high chemical resistance and durability during operation. The product has certificates allowing contact with drinking water and food, so it can also be used in food industry installations.

The manufacturer specifies the maximum working pressure at 11 bar and the operating temperature range from +1°C to +65°C. Standard 1/4" connections and 3/8" BSPP female thread ensure compatibility with many water filtration and treatment systems.
