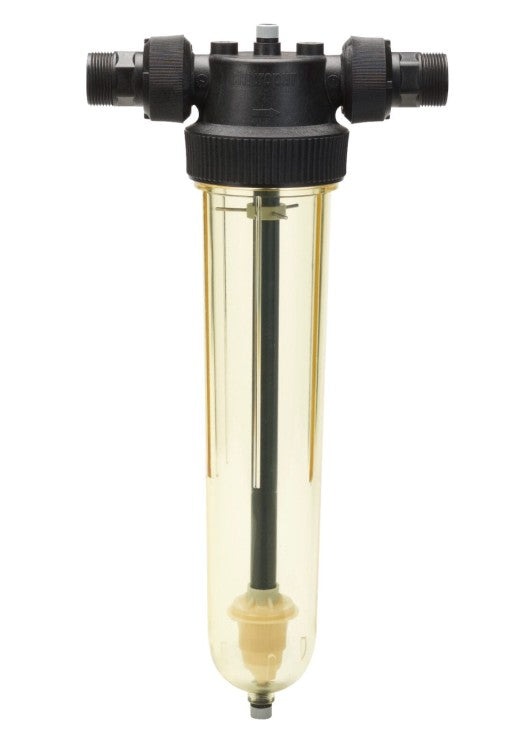

Cintropur NW32 Filter - Effective Water Protection for Your Home

The Cintropur NW32 filter is a compact pre-filter from a Belgian brand, designed for mechanical water purification in households and smaller installations. The device is installed on the main water connection, thereby protecting the entire installation and connected equipment - from the pump, through the softener, to the UV lamp - from sand, rust, sludge, and other solid contaminants.

The filter's operating principle is based on the centrifugal force generated by an internal centrifuge, which evenly distributes water over the surface of the filter cartridge. This ensures that contaminants are spread across the entire surface of the sleeve, and not just in one place, which extends its lifespan and maintains stable water flow even with heavy contamination.

The Cintropur NW32 provides a flow rate of up to 6.5 m³/h and is available with cartridges with filtration accuracies ranging from 5 to 300 microns. This is a single-stage device, however, it is possible to combine several filters in series or in parallel, depending on the installation's needs. It is suitable for both well water and municipal water, serving as the first stage of treatment before further filtration devices.

This solution is recommended for those looking for an affordable yet reliable way to protect their home's water installation for many years to come.

Parametry techniczne
Wymiary, dł. x szer. x wys 270 mm, 230 mm, 495 mm
Do wody gorącej
Maksymalne ciśnienie, Bar 16.0
Typ płukania Cartridge replacement (manual)
Wydajność, m³/h 6.5
View full details

Key Features

Product advantages

  • High water flow – up to 6.5 m³/h.The filter will meet the water demand even in larger households, without limiting the efficiency of the installation or the pressure in the taps.
  • Minimal pressure drops.Thanks to the large filtration surface of the cartridge, water pressure remains stable even when the cartridge is partially clogged – you don't have to stop using water immediately.
  • Centrifugal spinner.The built-in rotating mechanism distributes water evenly over the entire surface of the cartridge, so that contaminants do not accumulate in one spot, and the cartridge wears out slower.
  • Transparent bowl.It allows you to monitor the degree of cartridge contamination with the naked eye, without the need to dismantle the filter – you immediately see when it's time for a replacement.
  • Durable synthetic construction.The housing made of high-quality plastics is resistant to corrosion, pressure shocks and external factors, which translates into many years of trouble-free operation.
  • Low operating cost.The only cost of use are replaceable filter cartridges, sold in packs of 5 – the filter itself does not require additional financial outlays.
  • Simple installation.Union connections facilitate both the installation of the filter and its possible disassembly or change of thread diameter without the need to call a specialist.
  • Ability to combine filters.If necessary, several filters can be connected in series or parallel, increasing system efficiency or adapting it to specific installation requirements.
  • Wide range of filtration accuracy (5–300 microns).Ability to match the cartridge to the degree of water contamination – from very fine filtration to coarse purification of large amounts of contaminants.

Technical Data

Charakterystyka Wartość
Connection diameter 1¼"
Average flow (m3/hour) 6.5
Working pressure (bar) 10
Max. operating pressure (bar) 16
Maximum temperature (°C) 50
Weight (Kg) 1.7
Originally installed mesh size (µm) 25
Filter area (cm²) 840

User manual

The composition of the set

Cintropur NW 32 filter 1pc
Service wrench 1pc
25 micron filter cartridge 1pc
